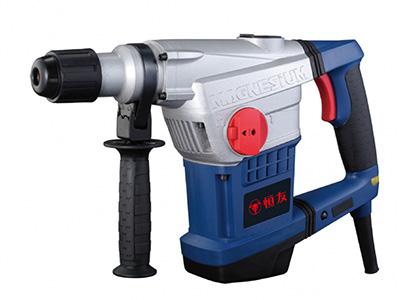

The Z2C-DW-40B2 rotary hammer uses an SDS MAX tool holder, ensuring a better working efficiency. The rotary hammer is suitable for large-diameter heavy-load drilling works, and also features strong impact force, which ensures an excellent hammer drilling/chiselling efficiency. The rotary hammer is equipped with an optional speed dial wheel to realize the variable speed function, which makes it easier to choose the right speed for complex working conditions.
The SDS MAX Rotary Hammer is used for multiple chiseling applications, especially when paired with a pointed chisel, narrow flat chisel, wide flat chisel, channeling chisel, gouge chisel or bush chisel. It is special suitable for stone breaking and mining. It is also widely used for pipe installation, equipment installation, rebar planting, strengthening, chemical anchoring, and more.
Rotary Hammer Drilling Diameter
Maximum Drilling Diameter: 40mm
Optimal Drilling Diameter: 18-25mm
Heavy Anchor Hole Drilling Diameter: 20-32mm
Maximum Core Drilling Diameter: 80mm
Parameters
Model Z2C-DW-40B2
Rated input power 1250W
No load speed 450 rpm
Impact rate 2800 bpm
Impact energy 10 J
Tool holder SDS MAX
Weight 6.8 KG
Lubrication Grease
Protection class Class II
Features

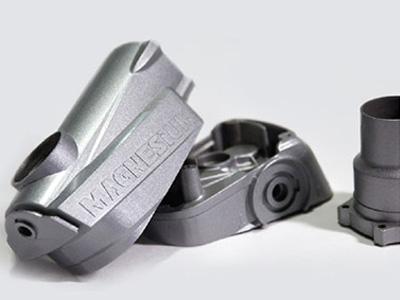

The rotary hammer features a lightweight magnesium alloy case, which is lighter than aluminum, ensuring the hammer is lighter and stronger, with a better cooling performance.

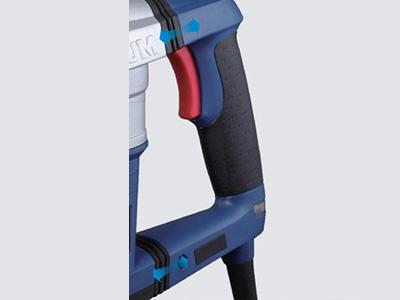

A dual damping system is used in order decrease shock at the handle, which helps protect the operator. The handle is covered with soft leather, which makes it more comfortable to operate, helps reduce operator fatigue, and ensures a better efficiency.

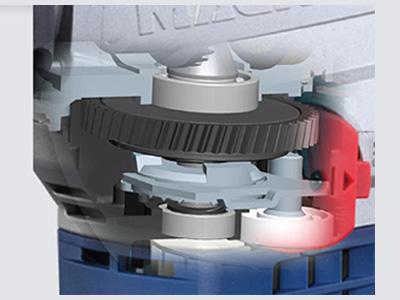

The safety clutch shuts the rotary hammer down in the event of an overload, which ensures operator and motor safety.

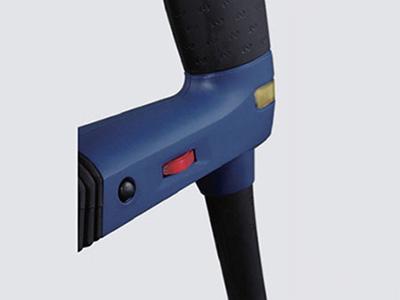

An optional electronic speed button allows for a more convenient speed selection in complex working conditions. A power source indicator light indicates if the circuit malfunctions, which further improves safety.

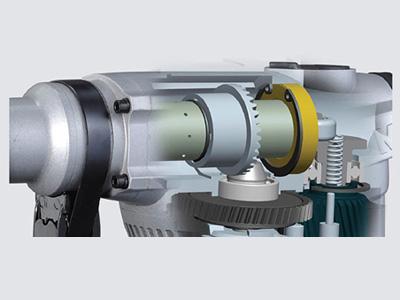

An improved transmission chain enhances the stability of rotary hammer and prolongs the service life.

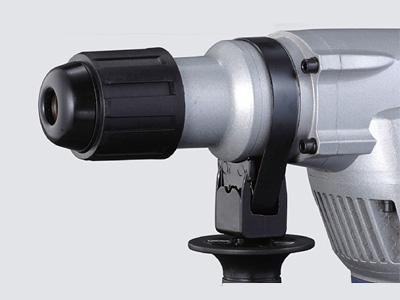

Adopt SDS MAX chuck system to improve the efficiency of drilling even on the high strength operation.
Hengyou is a professional rotary hammer and demolition hammer manufacturer that is experienced for over 30 years, with production power of 1.5 million per year. Hengyou owns two self-owned brands, “HENGYOU” and “PTG”, also provide OEM service according to customers’ requirements. Since establishment in 1988, we are dedicated to power tool developing and manufacturing, for now we have formed a complete manufacturing procedure. We’ve established professional technical team, manufacturing team, QA team, after service and support team, etc., choose Hengyou as your provider is a wise choice.
