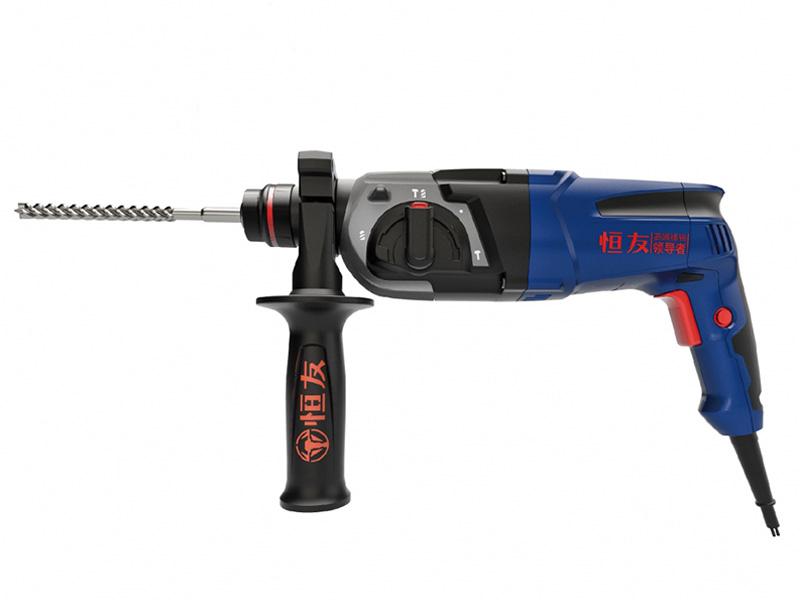

The Z2C-DW-26C4-T hammer drill is a lightweight rotary hammer, usually used for drilling works on concrete, metal plates, wood, and other materials. It is especially suitable for small diameter heavy load drilling works, such as house decoration, water and electricity supply installation, pipe installation, and more.

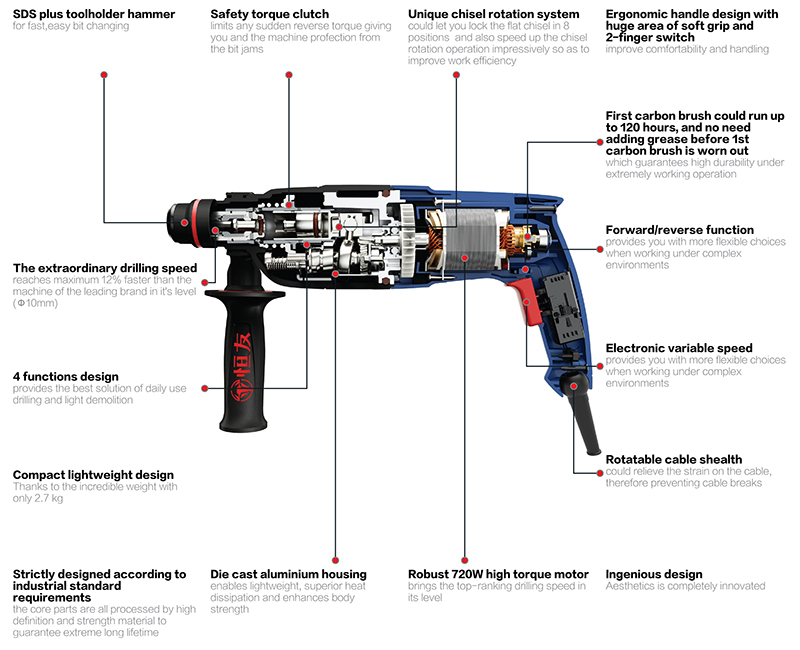

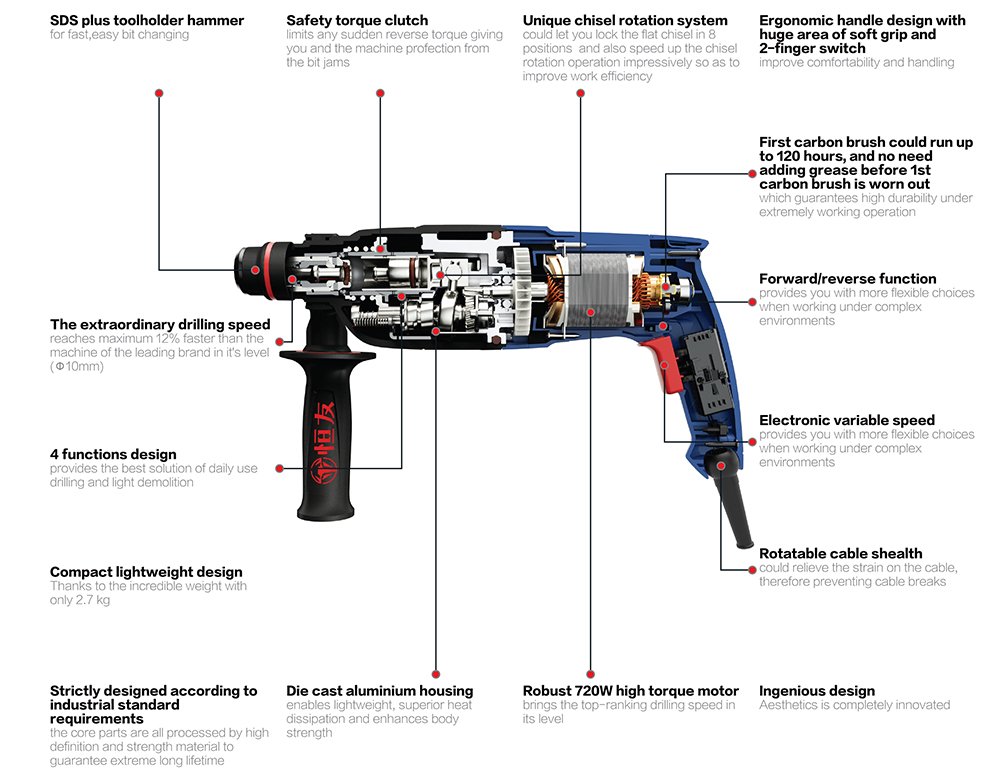

The rotary hammer applies die cast aluminum housing which enables lightweight, superior heat dissipation and enhances body strength. It weighs only 2.7kg, but has an exceptional durability. There are also a number of ventilation slots to assist in cooling, and protecting the device from overheating damage.
SDS PLUS Rotary Hammer Drilling Diameter
Maximum Drilling Diameter: 26mm
Optimal Drilling Diameter: 6-12mm
Medium Anchor Hole Drilling Diameter: 6-14mm
Maximum Core Drilling Diameter: 68mm
Wood Optimal Drilling Diameter: 5-18mm
Metal Plate Optimal Drilling Diameter: 4-18mm
Concrete Optimal Drilling Diameter: 26mm
Parameters
ModeZ2C-DW-26C4-T
Rated input power720W
No load speed0~1300 rpm
Impact rate0~4500 bpm
Impact energy3 J
Tool holderSDS PLUS
Weight2.7 KG
LubricationGrease
Protection classClass II
Details

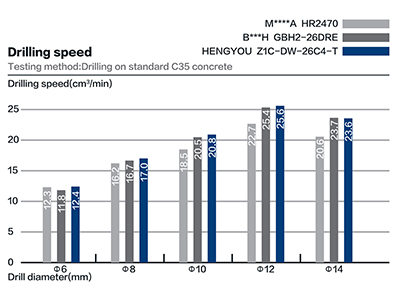

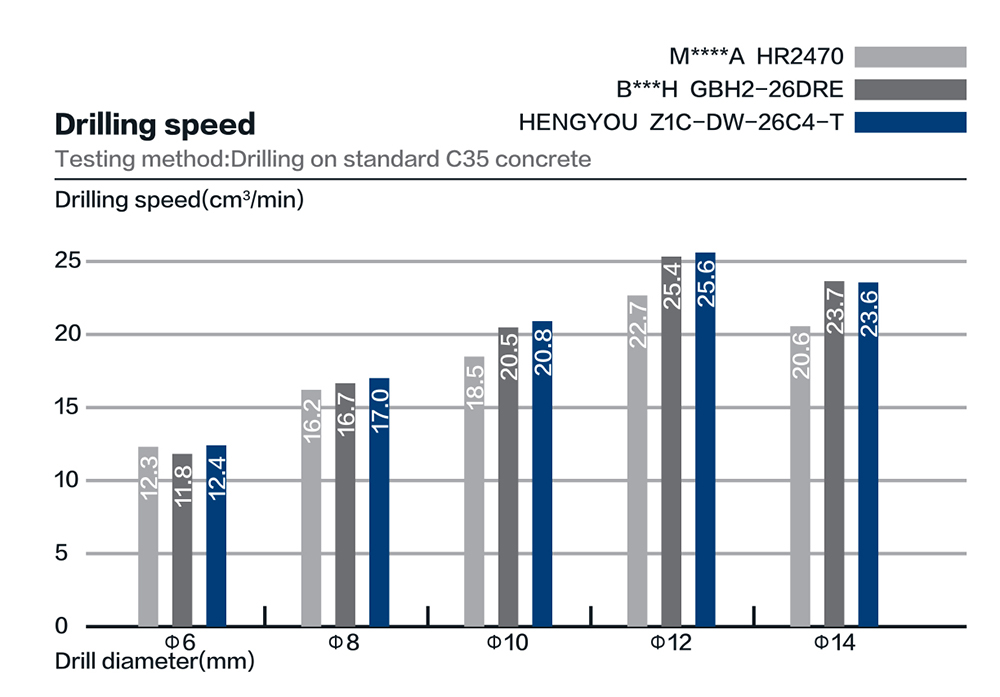

Drilling speed comparison with benchmark products

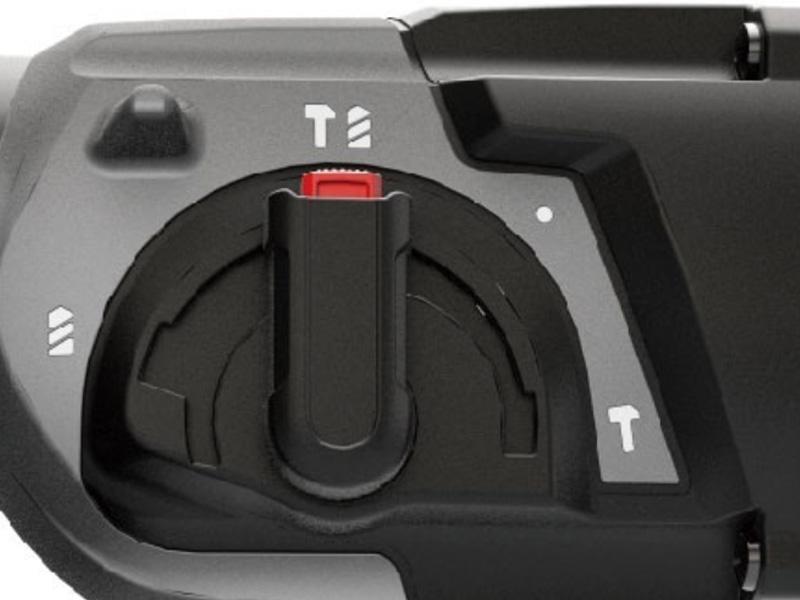

4 in 1 knob design provides best solution of daily use drilling and light demolition. (i.e. hammer drilling, drilling, chiselling, flat chisel rotation)

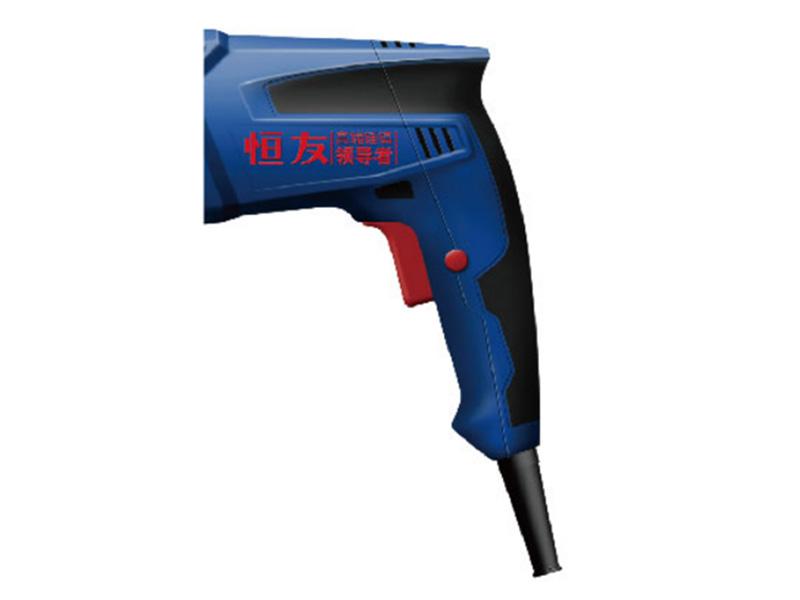

The handle is designed ergonomically, and is covered by soft leather to make it comfortable to hold and use.

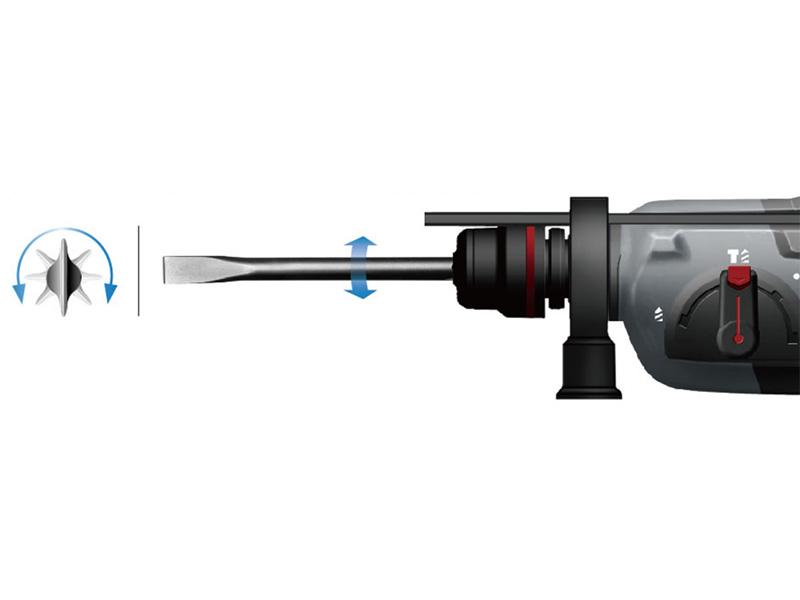

A unique flat chisel rotation system is used, which ensures an easier chisel direction change and a better efficiency.

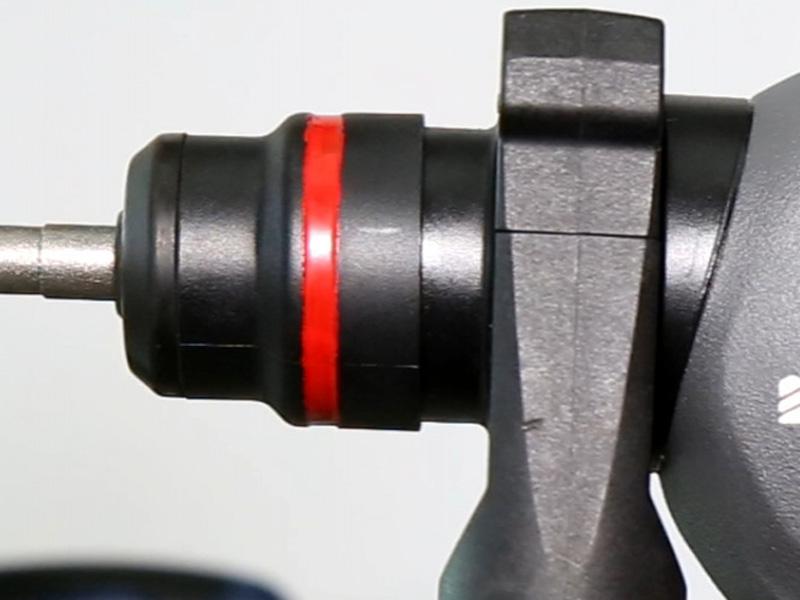

The quick-change chunk design makes it easier and more convenient for bit loading and unloading, making it easy for users to operate.
Hengyou is a professional rotary hammer and demolition hammer manufacturer that is experienced for over 30 years, with production power of 1.5 million per year. Hengyou owns two self-owned brands, “HENGYOU” and “PTG”, also provide OEM service according to customers’ requirements. Since establishment in 1988, we are dedicated to power tool developing and manufacturing, for now we have formed a complete manufacturing procedure. We’ve established professional technical team, manufacturing team, QA team, after service and support team, etc., choose Hengyou as your provider is a wise choice.
