The Z2C-DW-32C3-1 hammer drill is applicable for drilling works on concrete, metal plate, wood, and more, and is especially suitable for high strength rebar planting strengthening. The hammer drill is capable of multiple chiseling works when paired with a pointed chisel, narrow flat chisel, wide flat chisel, channeling chisel, gouge chisel or bush chisel. The hand-held hammer drill is primarily used for installation of facades, water and electricity supply, equipment and elevator, modifying and chiseling works on masonry, concrete and lightweight bricks.
Rotary Hammer Drilling Diameter
Maximum Drilling Diameter: 32mm
Optimal Drilling Diameter: 10-24mm
Medium Anchor Hole Drilling Diameter: 12-26mm
Maximum Core Drilling Diameter: 80mm
Parameters
Model Z2C-DW-32C3-1
Rated input power 1200W
No load speed 850 rpm
Impact rate 3800 bpm
Impact energy 5.5 J
Tool holder SDS PLUS
Weight 4.9 KG
Lubrication Grease
Protection class Class II
Features
An optimized appearance design, and a leather covered handle that has been ergonomically designed ensure the handle is comfortable to hold.
The unique chiseling function makes it easy to change the working angle, and ensure a better working efficiency.
The safety clutch has been subjected to 20,000 lifetime tests, ensuring the working safety and device durability.

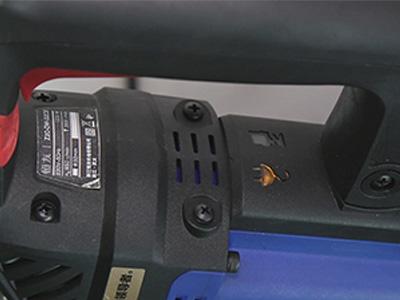

The power source indicator light will indicate if a circuit is malfunctioning, and the carbon indicator light indicates when the carbon brush needs to be changed.

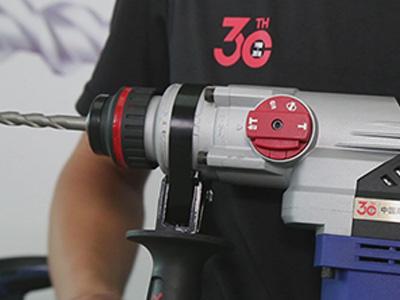

3 functions are easily switched between using the selector knob, which makes operation easier.
The hammer drill uses a rubble-proof shield design, which prevents motor damage caused by falling debris, and offers a better durability.
Hengyou is a professional rotary hammer and demolition hammer manufacturer that is experienced for over 30 years, with production power of 1.5 million per year. Hengyou owns two self-owned brands, “HENGYOU” and “PTG”, also provide OEM service according to customers’ requirements. Since establishment in 1988, we are dedicated to power tool developing and manufacturing, for now we have formed a complete manufacturing procedure. We’ve established professional technical team, manufacturing team, QA team, after service and support team, etc., choose Hengyou as your provider is a wise choice.
